- FOR OPEN END APPLICATIONS
- FOR NARROW WORKING SPACES
- REAR EXHAUST
Enquire Now
|
MODEL
|
Hex Size
|
Working Torque
|
Free Speed
|
Air Inlet
|
Overall Length
|
Sound Level
|
Net Weight
|
|
mm (inch)
|
ft-lb
|
Nm
|
rpm
|
NPT
|
mm
|
Inch
|
db (A)
|
lb
|
kg
|
|
RT-808LS
|
6,7,8,11,12 (1/4”,3/8”)
|
11
|
15
|
200
|
1/4
|
340
|
13.39
|
87
|
4.210
|
1.910
|
|
RT-814LS
|
10,11,12,13,14,(1/2″, 9/16″)
|
11
|
15
|
250
|
1/4
|
332
|
13.07
|
87
|
4.230
|
1.920
|
|
RT-819LS
|
10,11,12,13,14,15,16,17,18,19(11/16″)
|
59
|
80
|
150
|
1/4
|
390
|
15.35
|
92
|
5.330
|
2.420
|
|

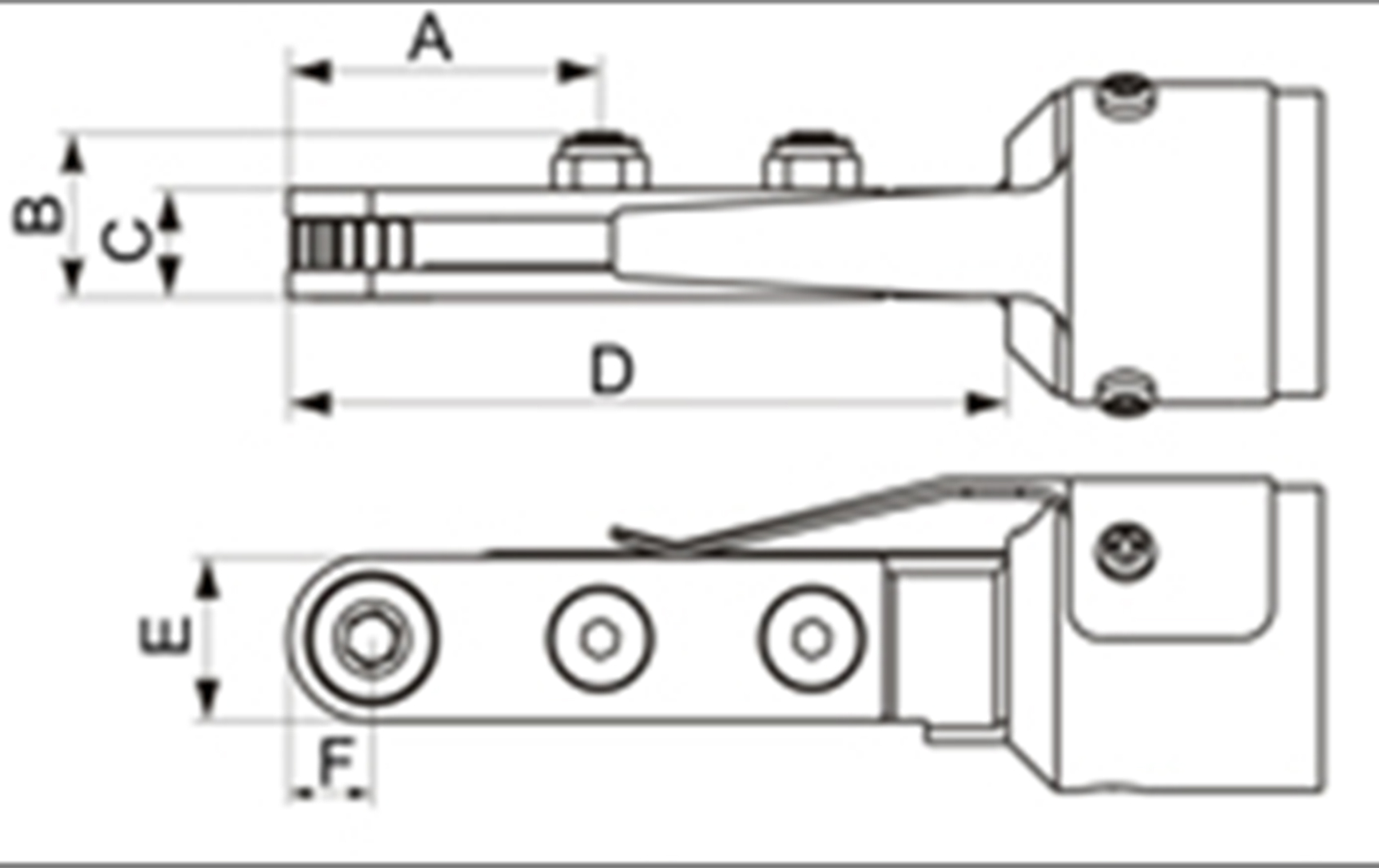

MODEL
|
A
|
B
|
C
|
D
|
E
|
F
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
|
RT-808LS
|
38.2
|
20
|
13.2
|
88.2
|
20
|
10.2
|
|
RT-814S
|
44.4
|
26
|
18
|
109
|
25.2
|
12.2
|
|
RT-819LS
|
51
|
26
|
18
|
115
|
33.2
|
16.6
|
|
MODEL
|
RT-808LS
|
RT-809LS
|
RT-810LS
|
|
Hex Size
|
ORDER CODE
|
|
6mm
|
RT-808LS-6
|
|
|
|
7mm
|
RT-808LS-7
|
|
|
|
8mm
|
RT-808LS-8
|
|
|
|
11mm
|
RT-808LS-11
|
RT-814LS-11
|
RT-819LS-11 |
|
12mm
|
RT-808LS-12
|
RT-814LS-12
|
RT-819LS-12 |
|
13mm
|
|
RT-814LS-13
|
RT-819LS-13 |
|
14mm
|
|
RT-814LS-14
|
RT-819LS-14
|
|
15mm
|
|
|
RT-819LS-15
|
|
16mm
|
|
|
RT-819LS-15 |
|
1/4”
|
RT-808LS-1/4”
|
|
|
|
3/8″
|
RT-814LS-1/2” |
|
|
|
1/2”
|
|
RT-814LS-1/2”
|
|
|
9/16”
|
|
RT-814LS-9/16” |
|
|
11/16”
|
|
|
RT-819LS-11/16”
|
9/16
